Trig’s compact radio is the ideal retro-fit that can be installed out with the main avionics stack. Trig’s compact radio is the perfect VHF comm, it is easy to use, faster to tune and takes up minimal space and weight. With features like Dual Watch, the unique ‘Push Step’ feature provide the fastest in class frequency selection and a built-in intercom Trig’s compact radio is ideal for most GA users requiring a certified aviation radio.
Contact your nearest Approved Trig Dealer now and benefit from our smart, affordable and future proof avionics.
Features
- Compact size, low weight – takes minimal panel space, only 74mm deep
- Unique ‘Push Step’ feature provides the ‘fastest in class’ frequency selection
- Dual watch – monitor two frequencies at the same time
- Manual dimming feature (adjustable backlight)
- Dual Control – two controller option for tandem cockpits
- Simple Installation
- Free European Minor Change approvals
Product Features

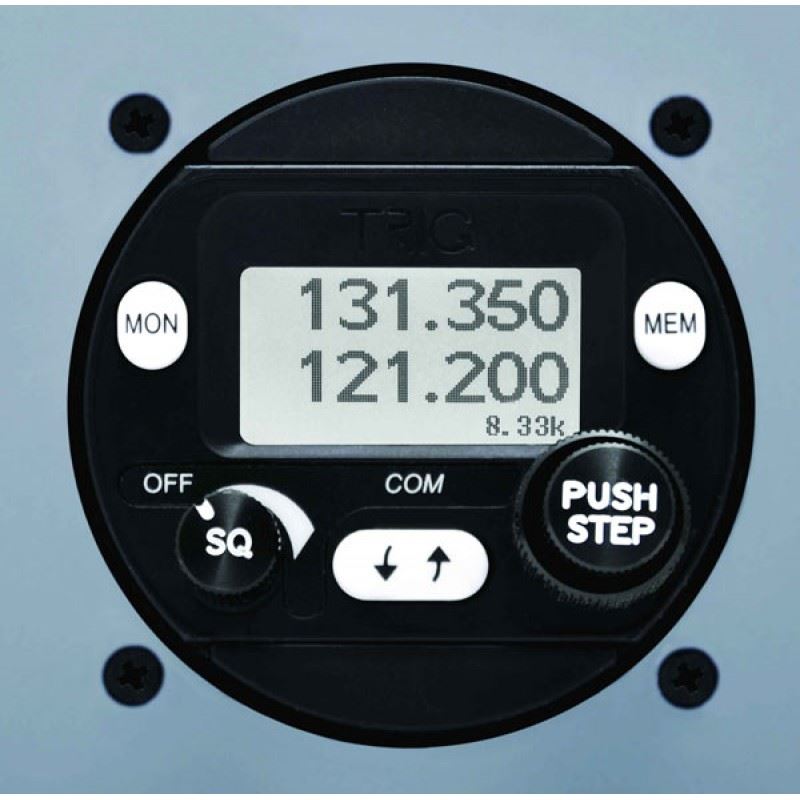

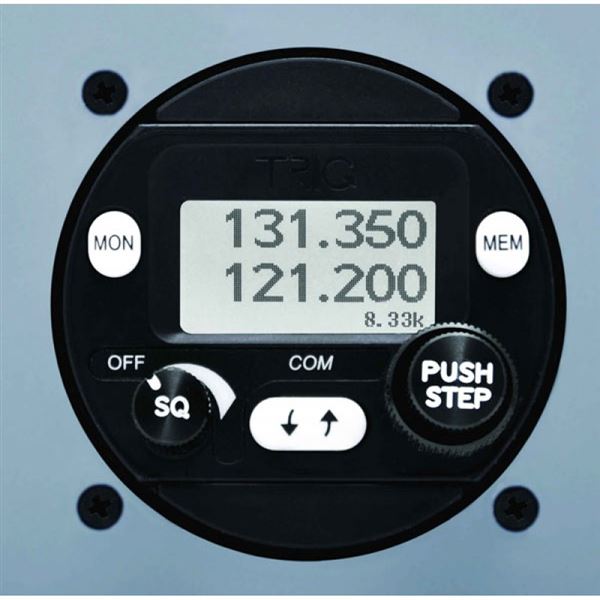

With a crisp clear display and simple user interface the Trig radio benefits from some great features; ‘Dual Watch’ feature allows monitoring of two frequencies at the same time. There are 9 pre-set channel memories which are easily selectable.
Trig’s compact radio is EASA ETSO and FAA TSO approved so it can be used worldwide. Our ‘Push Step’ feature enables the fastest tuning in its class – three times faster than in an 8.33 environment! For customers who do not require 8.33 channel spacing this feature can be disabled, allowing speedy selection between 50 kHz and 25 kHz spacing. This enables rapid change of frequency whilst providing fine tuning in 25 kHz steps if required.
Trig radios also feature a built-in high quality two place intercom with an aux-input, saving further cost and weight.
GPS Compatibility
The radio can integrate with popular GPS units; this allows the automatic display of en-route radio frequencies. Control of the radio via an EFIS display is also possible using industry standard SL40 and GTR225 protocols. This unique capability integrates your Trig radio with other avionics and provides real user flexibility.
Product design

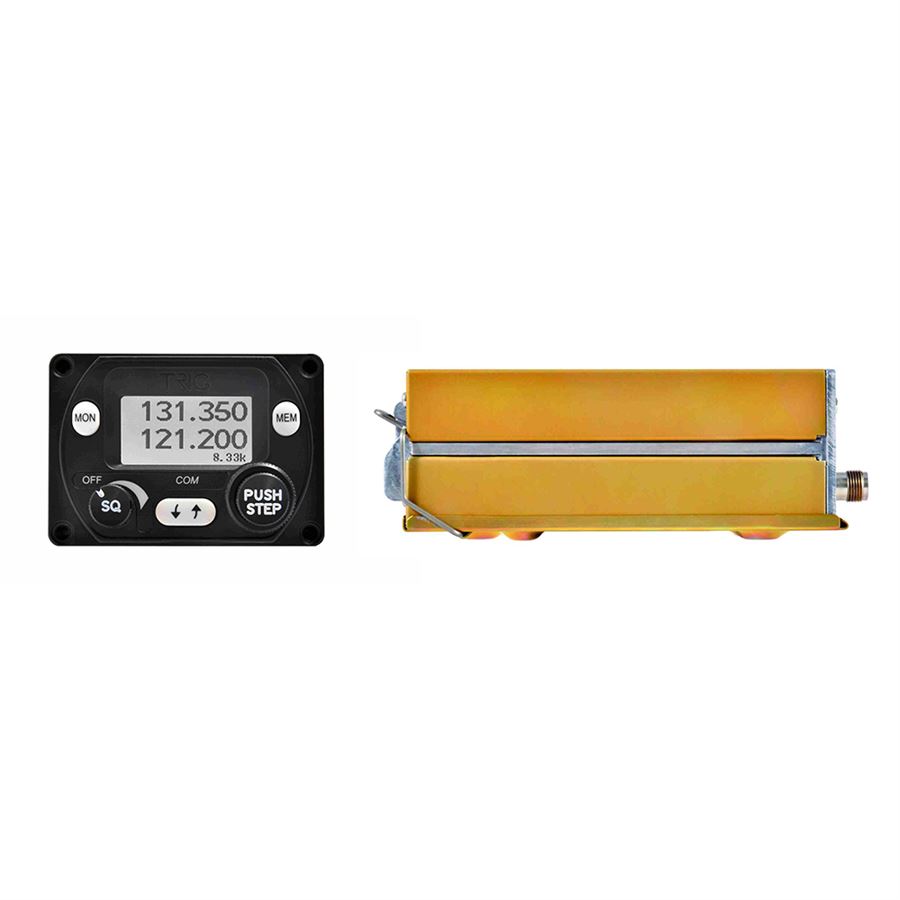

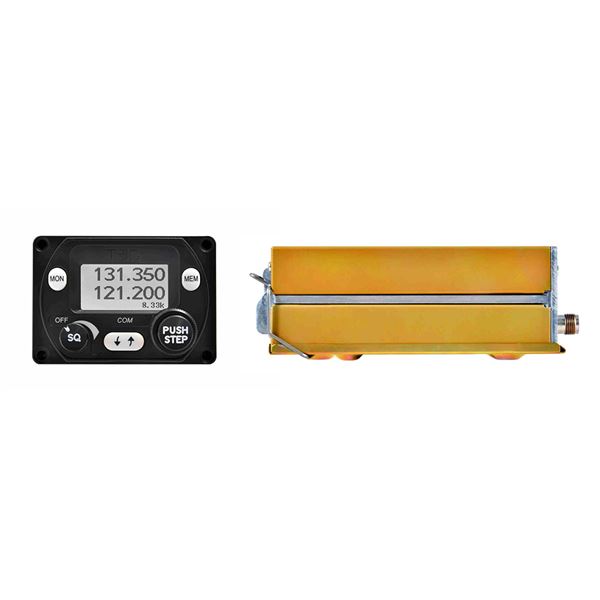

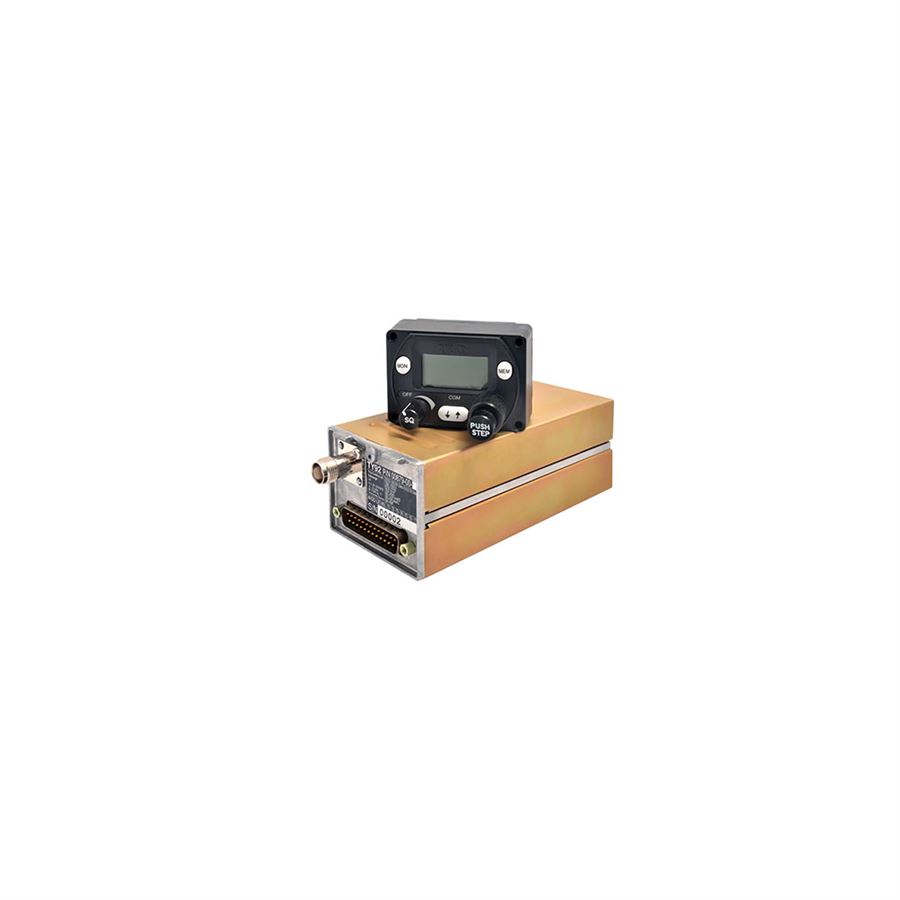

The innovative use of a control head and separate radio hardware unit provides more installation options, especially when space is at a premium. The control head can be conveniently mounted in a full 57mm (2 1”) round hole or even smaller compact mount. Fitting is straightforward, and once installed the depth of the radio control head is only 74mm (3”). In practice this means that the Trig compact control head can be located in an aircraft instrument panel where a ‘single box’ radio will simply not fit. The compact radio is the perfect comms partner to our compact transponder Mode S (1090 ES ADS-B Out transponders).

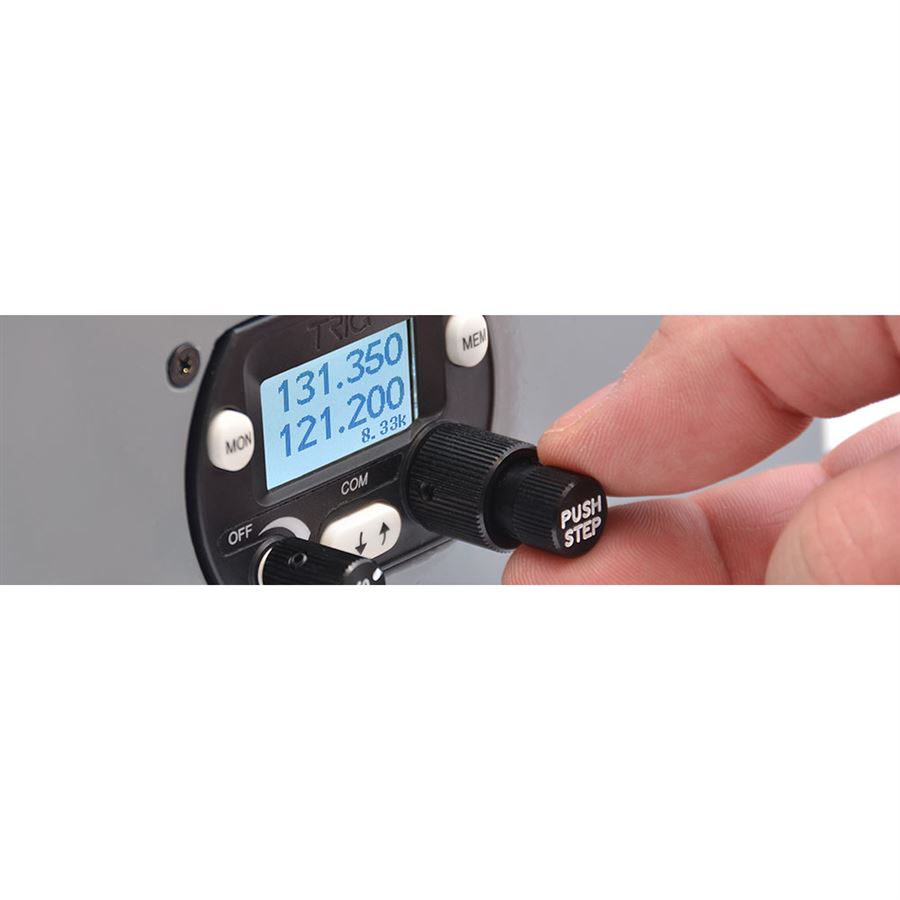

Push Step
Hadsets
The Trig compact radio two place intercom is optimised for use with standard aviation headsets – a number of adjustments allow the radio to be used successfully in noisy aircraft. The compact radio also has a built in speaker amplifier that can drive an external speaker, this is preferred by some glider pilots. If using a dynamic microphone with a Trig radio please note an amplified adaptor will be required.
Product Mode TY91
8.33kHz capable (required in Europe) Yes
Power Output 6W
Supply Voltage 11-33V
